Cheburashka weight mould, Brilliant system for jig heads and predator jigs CM161

Cheburashka weight mould – Brilliant system for jig heads and predator jigs CM161

Cheburashka Jig Head Mould

Cheburashka Clip-On Bottom Jigs are a simple yet highly effective way to fish that will allow you to easily assemble your own hook and sinker combination for soft plastics fishing. The setup consists of a jig head that is available in various weights, and the link. The link passes through the jig head connecting the hook on one side and the line on the other. Simply attach the hook type that best suits your favourite soft plastic.

• The hook types that can be used include a straight or long shank hook, wide gape worm hook, offset shank and so on.
• Double hooks can also be used.
• Where lure length is over 100mm, stinger hooks can also be added to the main hook.
• A single hook is generally the better method though, as unhooking is easier.
• In some instances rigs may require the use of a split ring if the hook has a vertical eye – this is not necessary for flat eye hooks.
• Once the right combination of lure, hook type and hook size is determined simply select the desired weight of jig head and clip it on.
• As currents or other factors change, eg wind speed affecting casting, the rig can be tuned by simply changing the weight.

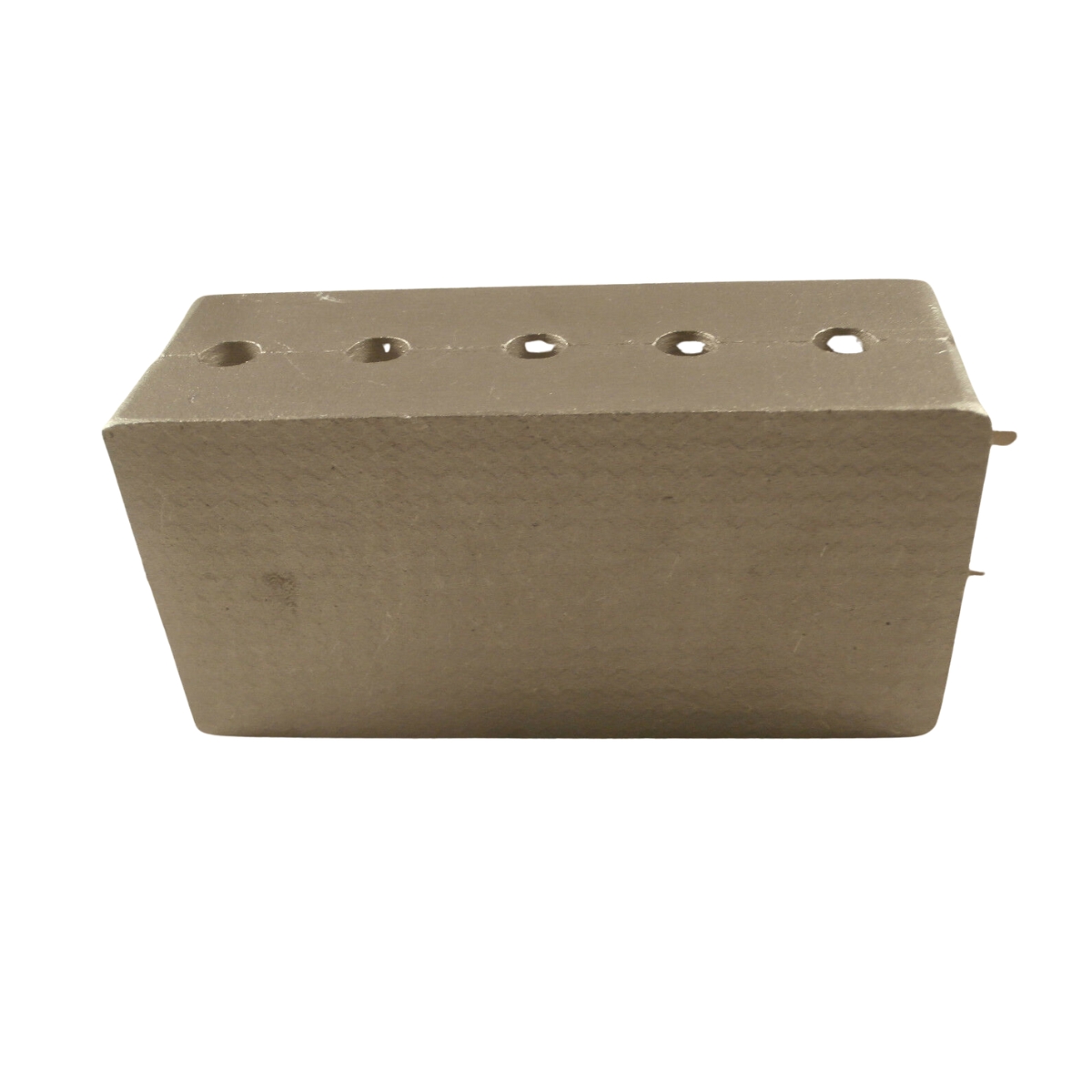

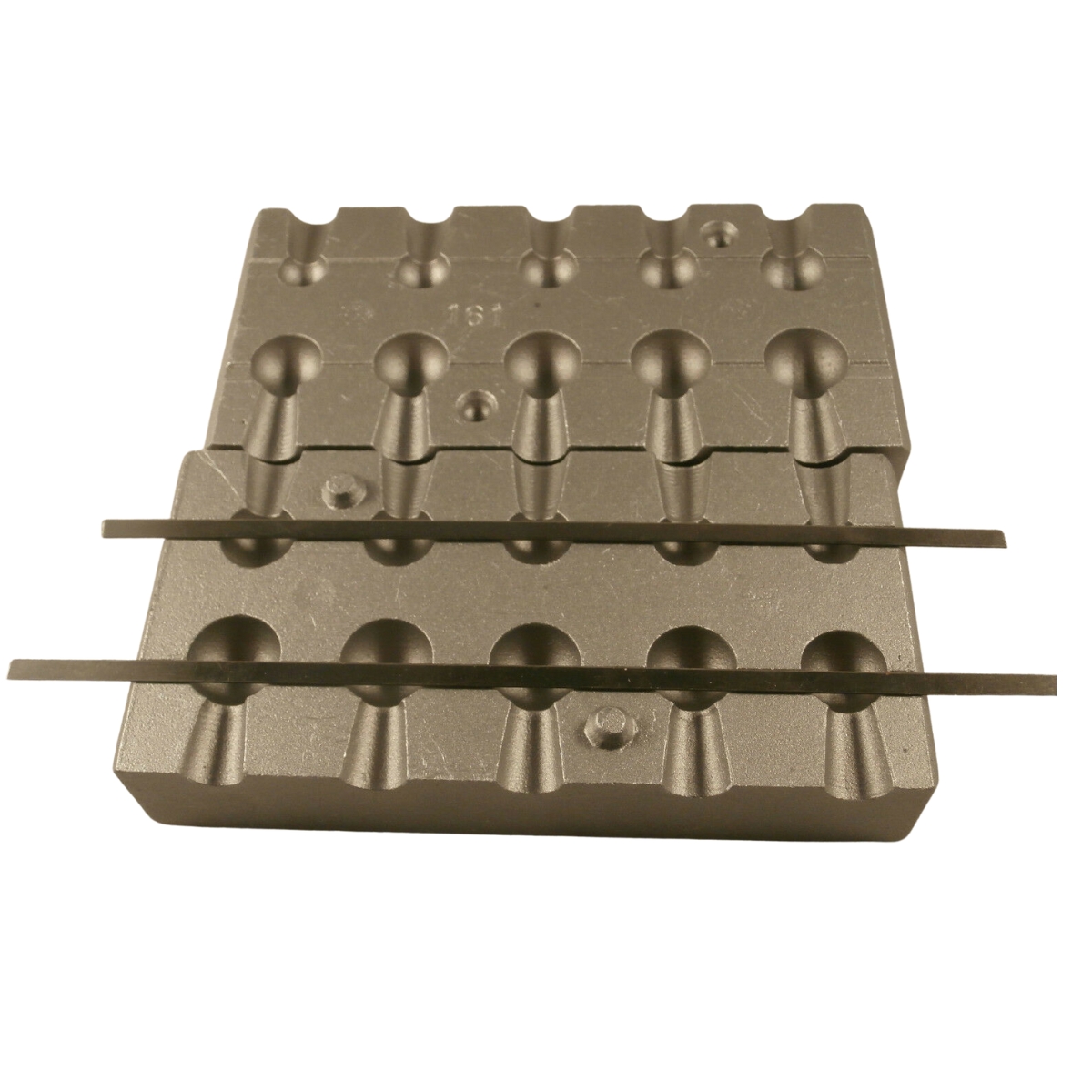

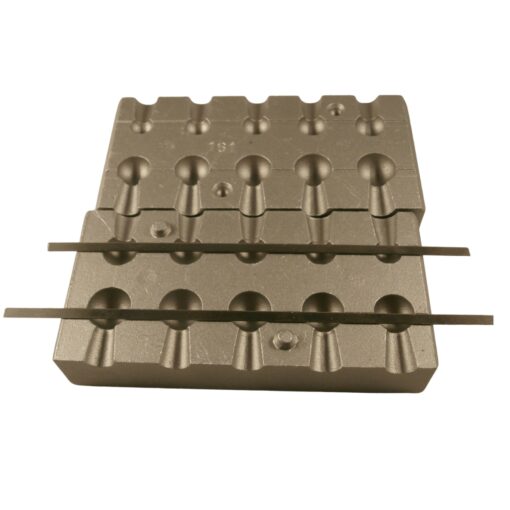

Lead mould for 10 Cheburashka from 2g to 16g

Optimal for the 2 to 10g are the smaller spring clips A for the other size weights,  spring clip B is required

2 sheets 0.6mm thick and 3mm wide are supplied

Coat the sheet with Anti Seize or similar grease, so the lead can be easily pulled from the sheet and the Spring Clips then fit exactly into the slot.

Weight available from all 3 models:

• CM161- 10 Weights, 3mm-4-5-6-7-8-9-10-11-12 -13mm
• CM173 – 9 Weights 14mm-16-18-20-22-24-26-28-30mm
• CM174 – 9 Weights 6mm-8-10-12-14-16-18-20-22mm

Each mould is accompanied with 2 metal strip to for the cavity for the locating clips.These are normally made from stainless spring wire 0.5 or 0.6mm. These should be coated with talc or a release agent prior to pouring the lead.

Lead Reminder

Please remember when working with molten metals to ensure you follow the safety guides. You can find these at https://www.hse.gov.uk/moltenmetals/index.htm
